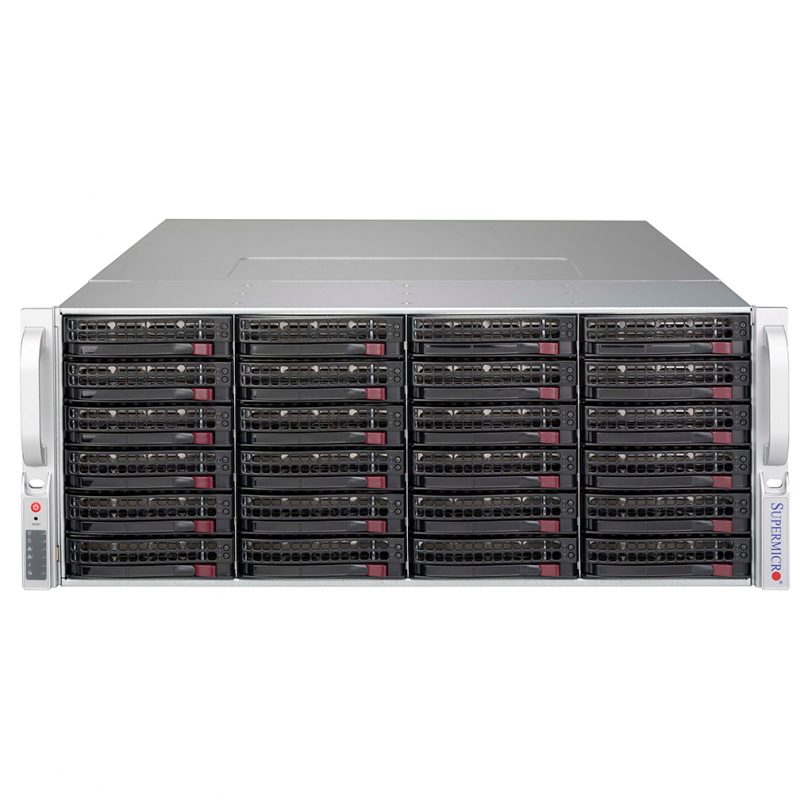

The R8E168LS-NO is an Open-E (Linux Based) NAS server which incorporates SATA or SAS storage capacities of 68TB to 1088TB in a 4U rack with an attached 4U JBOD.

Starting at



• Supermicro 4U Chassis

• Supermicro 4U JBOD

• RAID 0 to 6 Supported

• IPMI Support Included

• 68 Hot-Swappable Drive Bays

• LSI SATA/SAS RAID Controller

• Network Cards Teaming Supported

• Multi-Platform Support

• Slim DVD Drive included

• Rackmount Rails Included

• Quick and easy setup

• Dimensions: 26"(D) X 17.2"(W) X 14"(H)

• 8U Form Factor

• Only ships via FedEx Freight

Base Configuration:

• 2x Intel 6-Core Xeon Bronze 3204 1.9GHz


• On-Board Graphics

• Redundant 1280W 80+ Platinum

• On-Board Intel 10GbE Network Port

• LSI 9361-8i

• LSI 9380-8e

• 68x1TB SATA Hard Drives

• Open-E DSS V7

Inquire Now

Configurable Options

CPU Up to 2x Intel 20-Core Xeon Gold 6230 2.1GHz
Memory Up to 256GB DDR4 ECC/REG
RAID Controller LSI 9361-8i, LSI 9380-8e
Network 10GbE/5GbE/2.5GbE/1GbE/100Mb Ethernet Connectivity
Drives Up to 68x16TB SATA or SAS Hard Drives
Cache Vault Optional
Hot Spare Optional

Please call us if you don't see the configuration you're looking for.
