R8E168LS-NW

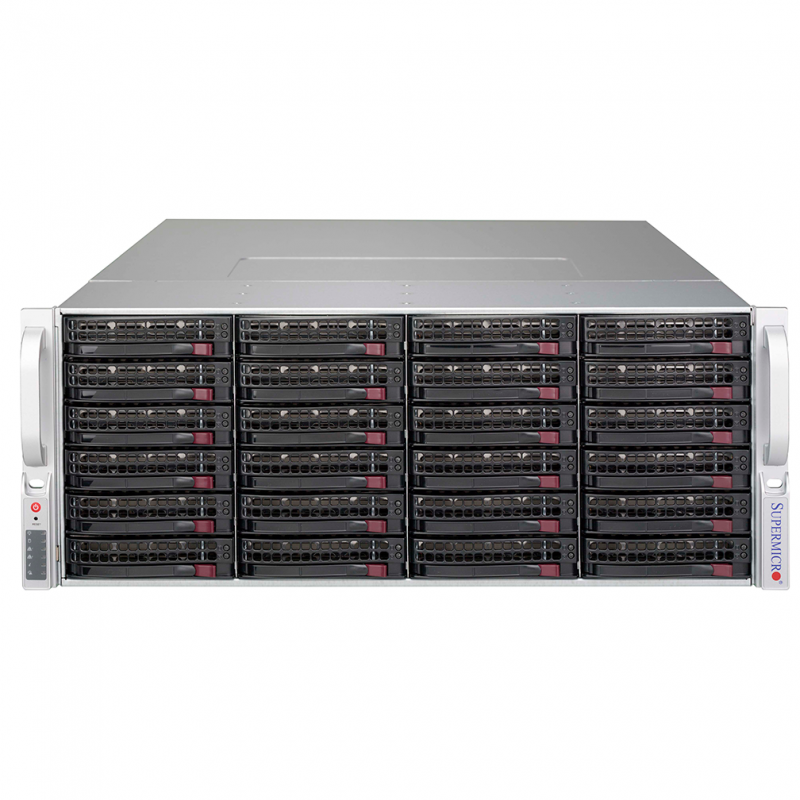

The R8E168LS-NW is a Windows based NAS server which incorporates SATA or SAS storage capacities of 68TB to 1088TB in a 4U rack with an attached 4U JBOD.
Starting at
$18,899.00
Specifications:
• Supermicro 4U Chassis
• Supermicro 4U JBOD
• RAID 0 to 6 Supported
• IPMI Support Included
• 68 Hot-Swappable Drive Bays
• LSI SATA/SAS RAID Controller
• Network Cards Teaming Supported
• Multi-Platform Support
• Slim DVD Drive included
• Rackmount Rails Included
• Quick and easy setup
• Dimensions: 26"(D) X 17.2"(W) X 14"(H)
• 8U Form Factor
• Only ships via FedEx Freight
Base Configuration:
• 2x Intel 6-Core Xeon Bronze 3204 1.9GHz
• 32GB DDR4 ECC/REG
• On-Board Graphics
• Redundant 1280W 80+ Platinum
• On-Board Intel 10GbE Network Port
• LSI 9361-8i
• LSI 9380-8e
• 68x1TB SATA Hard Drives
• Windows Storage Server 2019 (Workgroup)
Configurable Options
| CPU | Up to 2x Intel 20-Core Xeon Gold 6230 2.1GHz |
| Memory | Up to 256GB DDR4 ECC/REG |
| RAID Controller | LSI 9361-8i, LSI 9380-8e |
| Network | 10GbE/5GbE/2.5GbE/1GbE/100Mb Ethernet Connectivity |
| Drives | Up to 68x16TB SATA or SAS Hard Drives |
| Cache Vault | Optional |
| Hot Spare | Optional |
Please call us if you don't see the configuration you're looking for.
